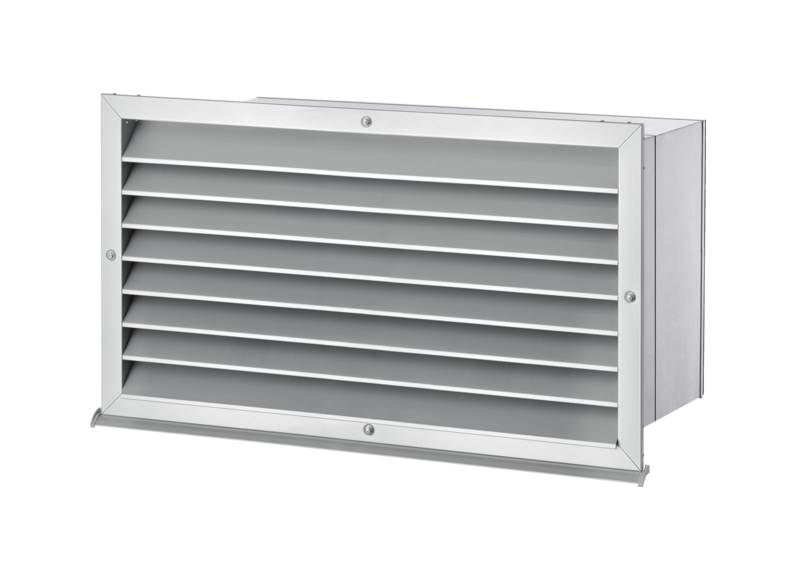

AWG 560 H-SR

    • Condensate run marks on the wall face are prevented by a wide drip edge on the frame
    • Integral rodent guard prevents small animals and leaves getting in
    • Good protection from weather and low pressure losses, thanks to optimised fin geometry
    Questions about the product Get contact

    Product details

    Thermally insulated external wall outlet for air routing from air source heat pumps installed indoors, with oval connection.


    Technical datasheet

    Product Number: 233837

    Height: 490 mm

    Width: 897 mm

    Depth: 627 mm

    Nominal diameter: 560 mm

    Min. outlet aperture: 830x430 mm

    Wall thickness: 280 - 500 mm

    Max. air flow rate: 3500 m³/h

    Colour: silver-metallic

    Material: Sheet steel

    Version: Horizontal weather grille painted in metallic silver

    Show all

    Download as PDF

Installation Information:

Please ask your local power supply utility or a registered electrician to install appliances that are not fully wired, i.e. ready to plug in. The electrician should also be able to assist you with obtaining the agreement of the respective power supply utility required for the appliance installation.
