Accessories

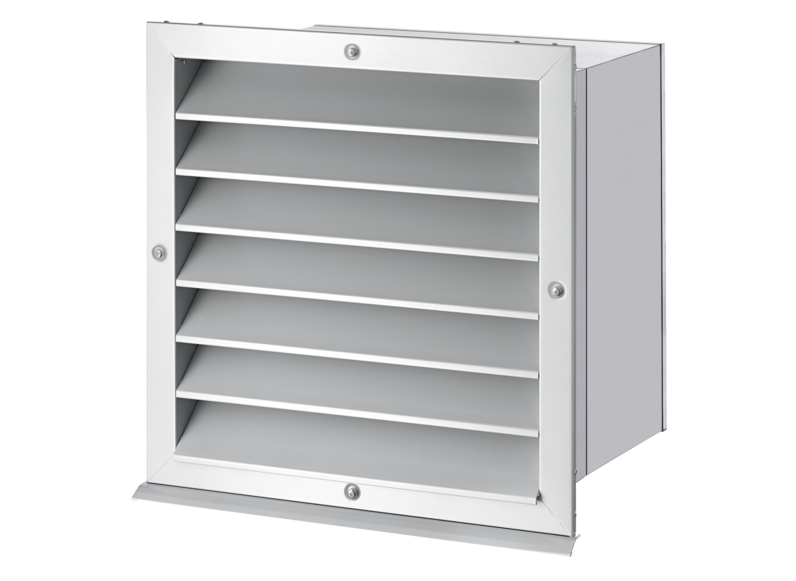

AWG 315 GL

    • Robust sheet steel design
    • Weather grille painted grey
    • Telescopic for optimal adjustment
    Questions about the product Get contact

    Product details

    Description • The thermally insulated wall outlet is suitable for routing the air ducts of indoor air source heat pumps and integral systems. • The length can be adjusted to suit the wall thickness thanks to telescopic technology.



    Technical datasheet

    Product Number: 232955

    Height: 490 mm

    Width: 483 mm

    Depth: 627 mm

    Nominal diameter: 315 mm

    Min. outlet aperture: 450x450 mm

    Wall thickness: 280 - 500 mm

    Max. air flow rate: 1300 m³/h

    Colour: RAL 9006

    Material: Sheet steel

    Version: With grey painted weather grille

    Show all

    Download as PDF

Installation Information:

Please ask your local power supply utility or a registered electrician to install appliances that are not fully wired, i.e. ready to plug in. The electrician should also be able to assist you with obtaining the agreement of the respective power supply utility required for the appliance installation.
