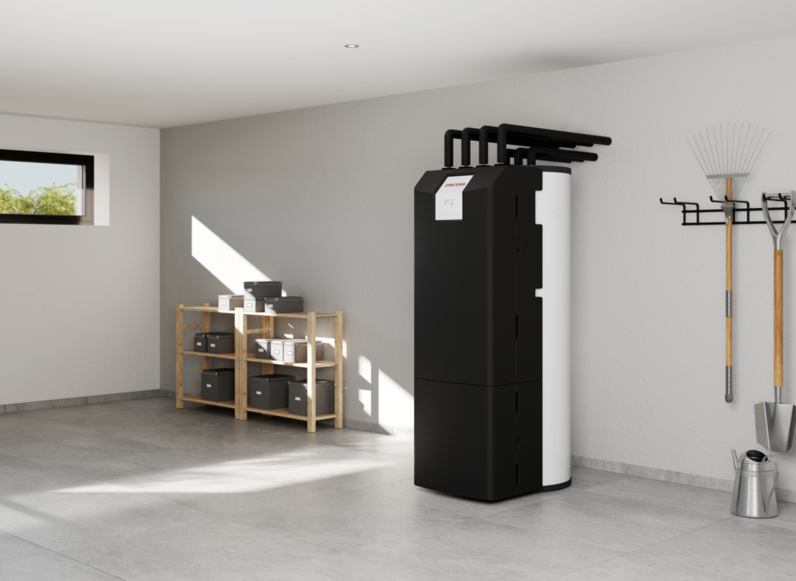

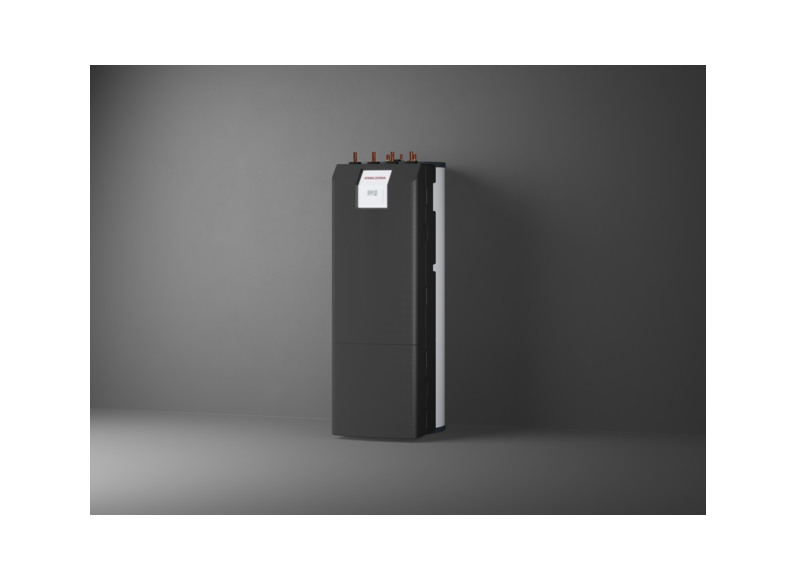

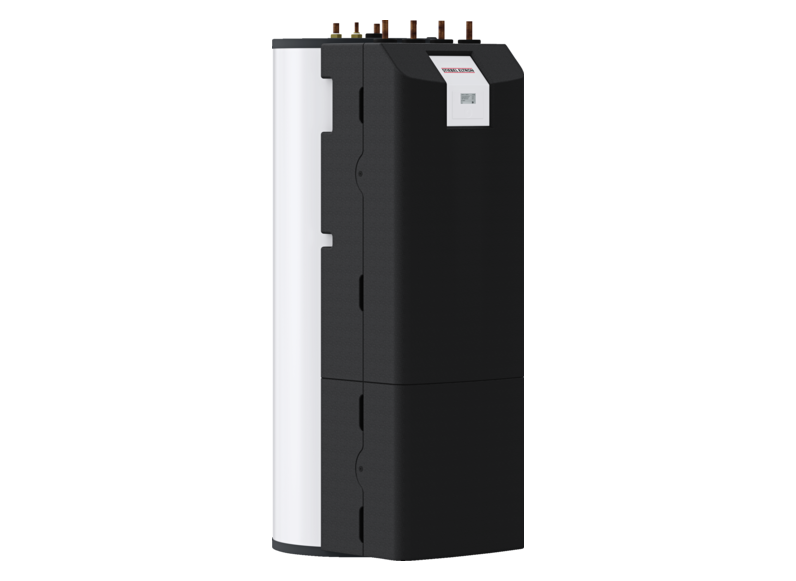

Integral cylinder
HSBC 180 Plus

  • 360°
    • Combi unit comprising a DHW cylinder and a buffer cylinder
    • Halves the installation space required for separate cylinders
    • Compact, reliable and energy saving

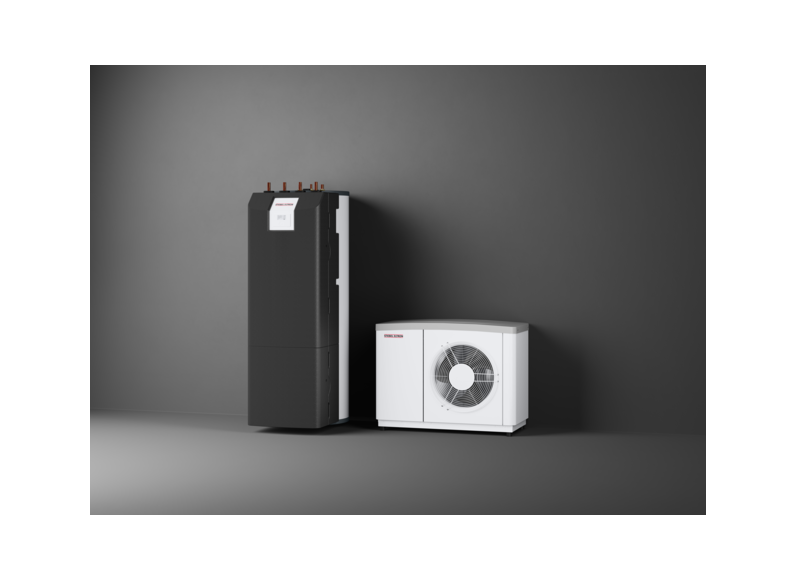

    • Perfect for combination with heat pumps installed outdoors for DHW heating and room heating
    • Can also be used for cooling
    Questions about the product Get contact

    Product details

    Benefit from a range of functions in the smallest of spaces

    This integral cylinder makes it easy for you to enjoy heating and hot water at any time, yet in a particularly economical way. The integral buffer cylinder stores thermal energy that isn't currently needed and releases it to the heating circuit when it is. At the same time, it also boosts the reliability of the system as a whole. Thus making sure that you're plentifully supplied.

    Find your cool in the summer

    An additional benefit of this integral cylinder is the option for cooling via an underfloor heating system or fan coil units. Despite this extensive functionality, you need only a compact appliance which takes up minimal space, conveniently combined with an outdoor air source heat pump.


    ERP product datasheet
    Reach-Information
    Technical datasheet

    Product Number: 202927

    Energy efficiency class: B

    Nominal capacity, DHW cylinder: 178 l

    Nominal capacity, buffer cylinder: 80 l

    Surface area, heat exchanger: 1.59 m²

    Height: 1910 mm

    Width: 605 mm

    Depth: 917 mm

    Height when tilted: 1986 mm

    Weight: 134 kg

    Show all

    Download as PDF

    Equipment datasheet

Installation Information:

Please ask your local power supply utility or a registered electrician to install appliances that are not fully wired, i.e. ready to plug in. The electrician should also be able to assist you with obtaining the agreement of the respective power supply utility required for the appliance installation.
