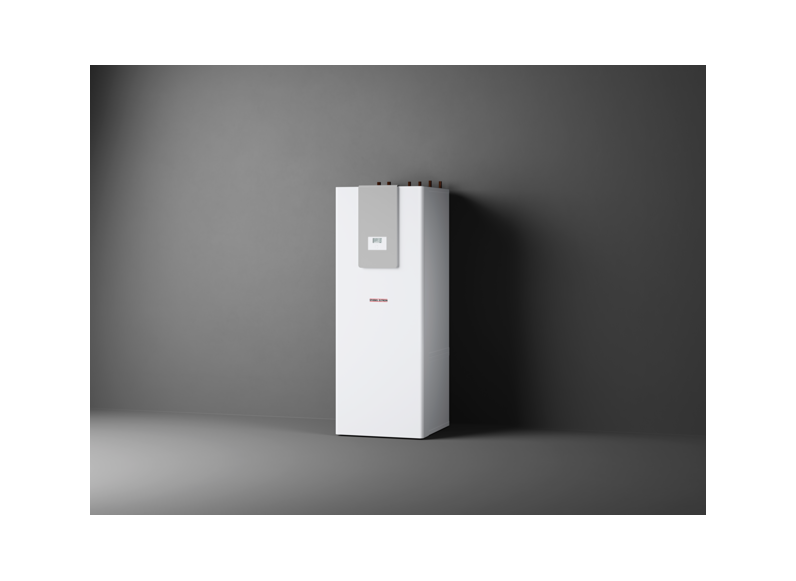

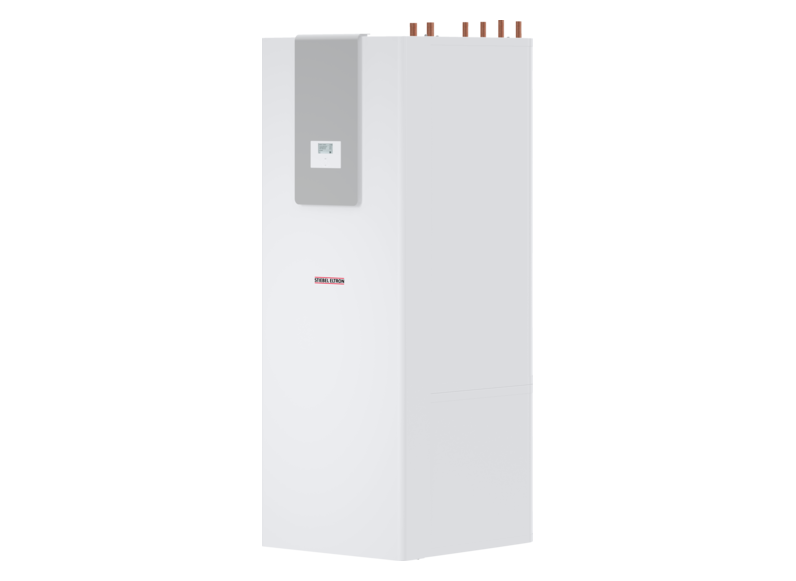

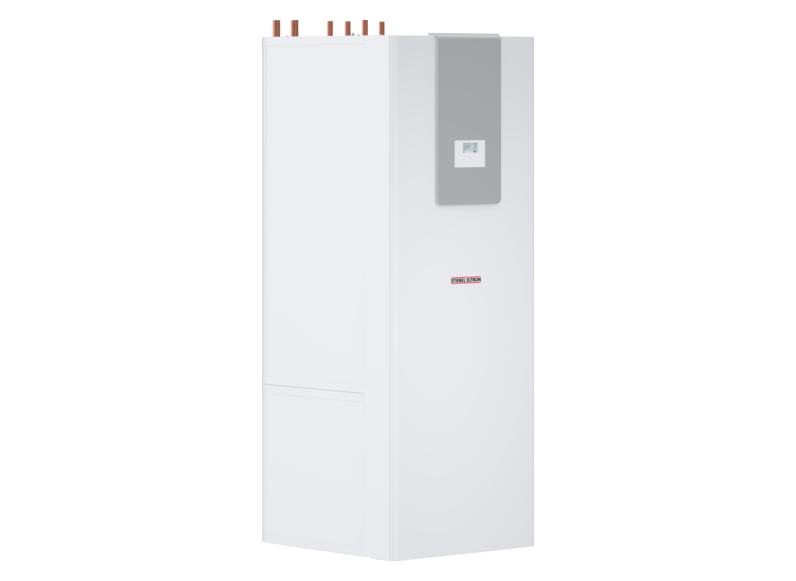

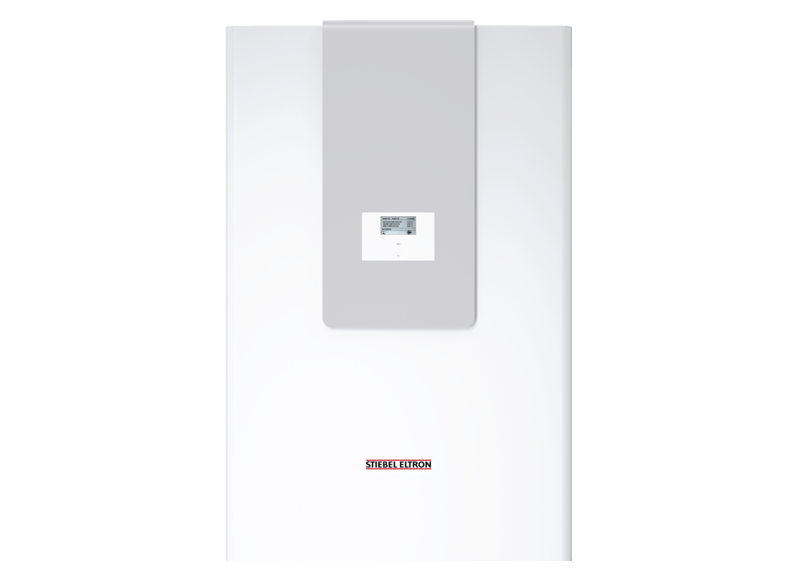

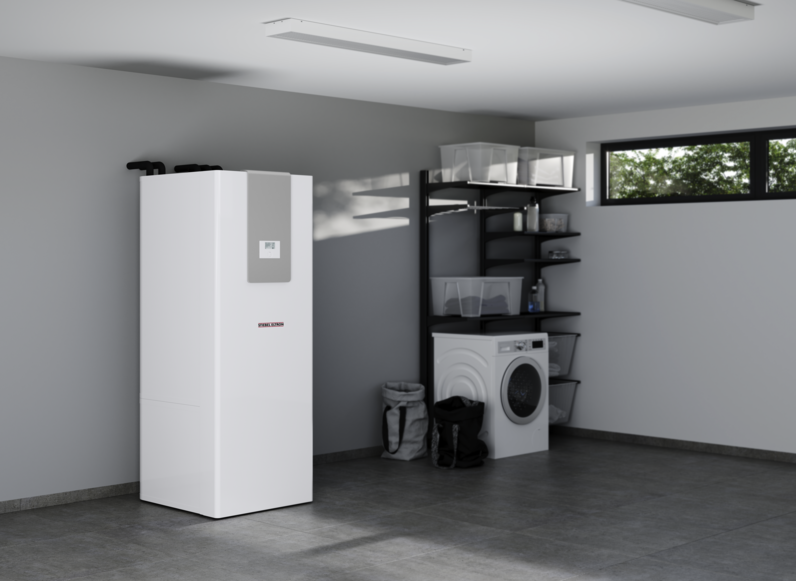

DHW cylinder
HSBC 200

  • 360°
    • Combi unit comprising a DHW cylinder and a buffer cylinder
    • Halves the installation space required for separate cylinders
    • Compact, reliable and energy saving for use in family homes
    • Perfect for combination with an air source heat pump for DHW heating and room heating
    • Connection of two heating circuits possible
    • Hot water cylinder with 168 litre capacity and buffer cylinder with 100 litre capacity
    Questions about the product Get contact

    Product details

    Put together the perfect duo for your home

    Opt for one appliance and get two cylinders. That's possible with this cylinder solution. This space saving combination of hot water cylinder and buffer cylinder can reliably supply the hot water needs of your family house.

    Never do without heat

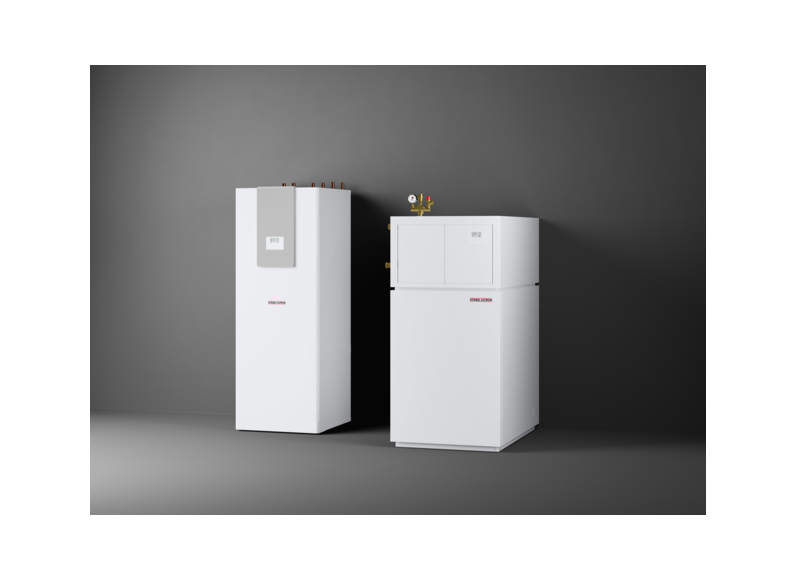

    Thanks to its carefully coordinated design, you can easily connect the integral cylinder to a suitable model from our range of efficient air source heat pumps. This ensures an absolutely reliable supply of domestic hot water and heating energy in your home.


    ERP product datasheet
    Reach-Information
    Technical datasheet

    Product Number: 233510

    Energy efficiency class: B

    Nominal capacity, DHW cylinder: 168 l

    Nominal capacity, buffer cylinder: 100 l

    Surface area, heat exchanger: 3.30 m²

    Height: 1908 mm

    Width: 680 mm

    Depth: 871 mm

    Height when tilted: 2107 mm

    Weight: 203 kg

    Show all

    Download as PDF

    Equipment datasheet

Installation Information:

Please ask your local power supply utility or a registered electrician to install appliances that are not fully wired, i.e. ready to plug in. The electrician should also be able to assist you with obtaining the agreement of the respective power supply utility required for the appliance installation.
