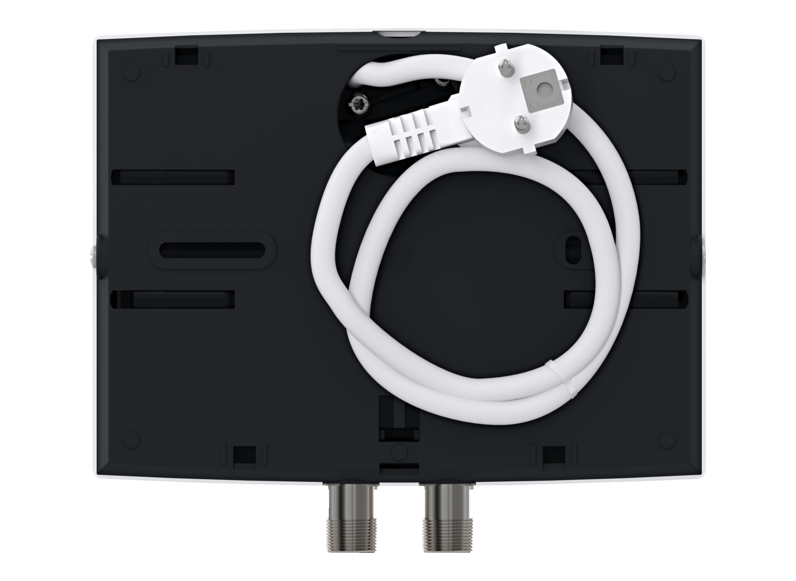

Mini instantaneous water heaters
EIL 3 Trend

  • Product details

    The flexible way to freshen up

    Do you want a reliable supply of hot water to your hand washbasin without wasting energy? Then choose this mini instantaneous water heater. Its direct connection to the tap and fast bare wire heating system ensure that DHW is available for you immediately.

    Adapted to your needs

    Since this appliance is very small, you have plenty of
    options for where to install it, such as in your guest
    bathroom. Furthermore, as it is so adaptable,
    this instantaneous water heater can be mounted
    either above or below the washbasin.



    Reach-Information
    Technical datasheet

    Product Number: 200142

    Rated voltage: 230 V

    Rated voltage 1: 200 V

    Rated voltage 2: 220 V

    Rated voltage 3: 230 V

    Rated voltage 4: 240 V

    Rated output: 3,53 kW

    Rated output 1: 2,7 kW

    Rated output 2: 3,2 kW

    Rated output 3: 3,53 kW

    Rated output 4: 3,8 kW

    Rated current: 15,2 A

    Rated current 1: 13,3 A

    Rated current 2: 14,5 A

    Rated current 3: 15,2 A

    Rated current 4: 15,8 A

    Fuse protection: 16 A

    Fuse protection 1: 16 A

    Fuse protection 2: 16 A

    Fuse protection 3: 16 A

    Fuse protection 4: 16 A

    Frequency: 50/60 Hz

    Frequency 1: 50/60 Hz

    Frequency 2: 50/60 Hz

    Frequency 3: 50/60 Hz

    Frequency 4: 50/60 Hz

    Phases: 1/N/PE

    Height: 143 mm

    Width: 190 mm

    Depth: 82 mm

    Water connection: G 3/8 A

    IP rating: IP25

    Colour: white

    Weight: 1.40 kg
