Mini instantaneous water heaters
EIL 7 Premium

    • Mini instantaneous water heater with electronic closed-loop control for small amounts of hot water available immediately

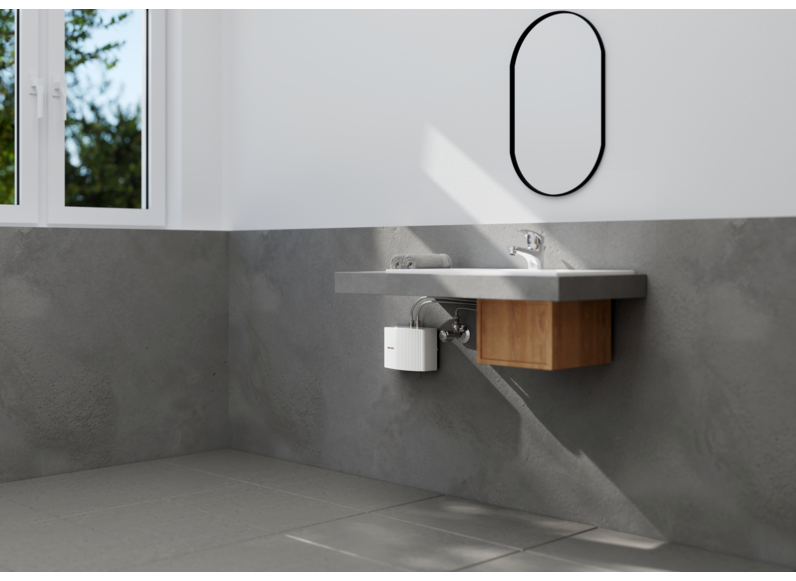

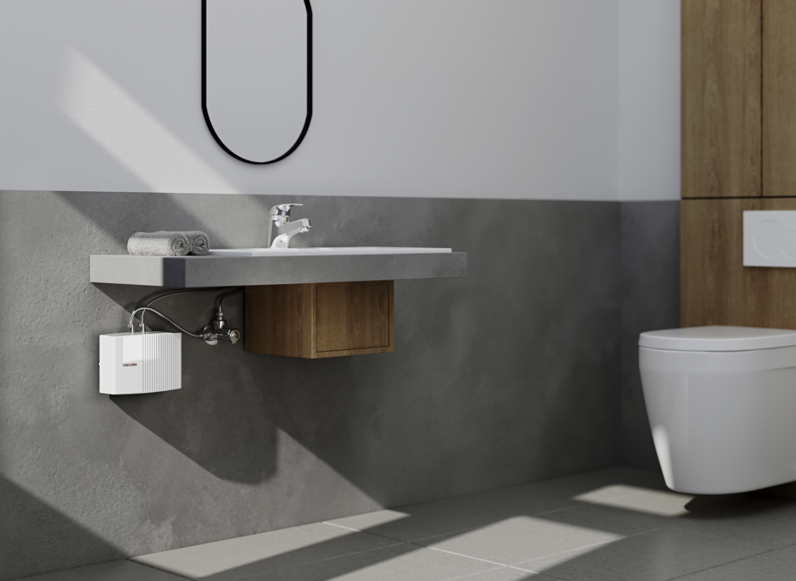

    • Flexible installation thanks to undersink or oversink installation
    • Can be operated with pressure-tested or non-pressurised taps
    • Accurate temperature delivery up to the maximum output
    • Temperature limit adjustable from approx. 30 °C to 50 °C
    • Special aerator for perfect flow pattern
    Questions about the product Get contact

    Product details

    Compact convenience that speaks for itself

    Your preferred temperature without the annoyance of heat loss from the pipework along the way
    – this mini instantaneous water heater brings you the "new normal". The appliance with electronic closed-loop control is especially well suited to hand washbasins, where it will supply you with small amounts of warm water.

    Enjoy hot water without any detours

    This mini instantaneous water heater makes a
    convincing case for efficient DHW heating:
    since you connect the appliance directly to the tap
    and have the choice of installation above or below
    the washbasin, you save both water and energy. This is because there are no long pipe runs. There is no need to manually
    set the temperature either.
    This makes the appliance more practical and convenient for you to use.


    ERP product datasheet
    Reach-Information
    Technical datasheet

    Product Number: 200137

    Rated voltage: 400 V

    Rated voltage 1: 380 V

    Rated voltage 2: 400 V

    Rated output: 6,5 kW

    Rated output 1: 5,9 kW

    Rated output 2: 6,5 kW

    Rated current: 16,3 A

    Rated current 1: 15,5 A

    Rated current 2: 16,3 A

    Fuse protection: 20 A

    Fuse protection 1: 16 A

    Fuse protection 2: 20 A

    Frequency: 50/- Hz

    Frequency 1: 50/- Hz

    Frequency 2: 50/- Hz

    Phases: 2/PE

    Height: 143 mm

    Width: 190 mm

    Depth: 82 mm

    IP rating: IP25

    Temperature setting: 30 – 50 °C

    Colour: white

    Weight: 1.50 kg

    Energy efficiency class: A

    Show all

    Download as PDF

Installation Information:

Please ask your local power supply utility or a registered electrician to install appliances that are not fully wired, i.e. ready to plug in. The electrician should also be able to assist you with obtaining the agreement of the respective power supply utility required for the appliance installation.
