Compact instantaneous water heater
DCE 11/13

    • Compact instantaneous water heater with electronic closed-loop control
    • Very good energy efficiency thanks to 3i technology
    • Accurate temperature setting in the range of 20 - 60 °C
    • Adjustable temperature limit as anti-scalding protection for children
    • Exceptionally slimline, compact design
    Questions about the product Get contact
    award
    award

    Product details

    Efficiency with an especially compact design

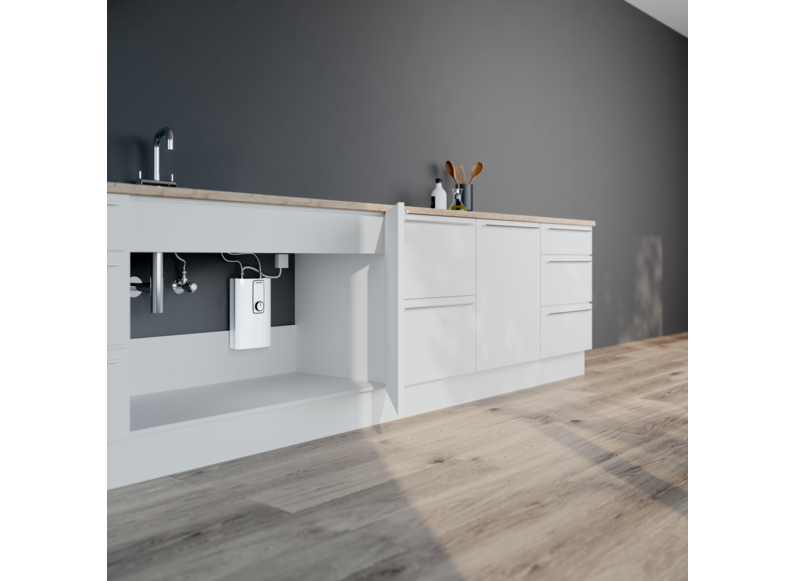

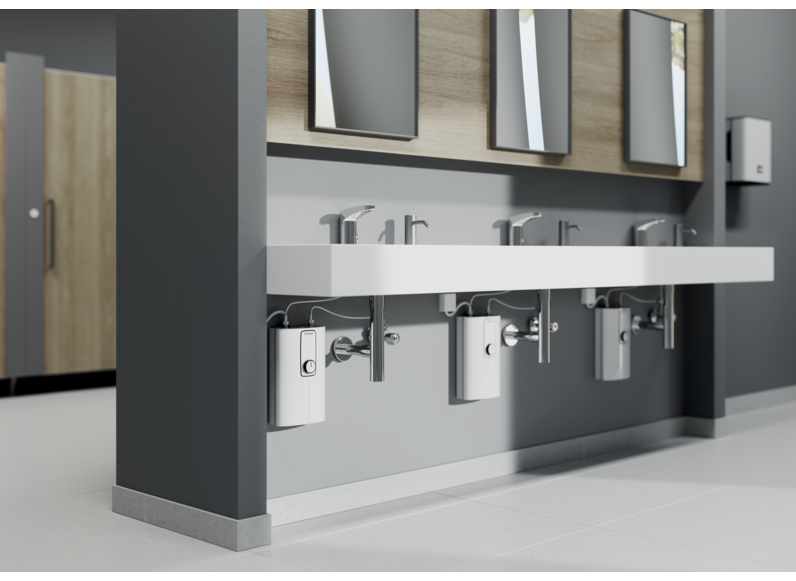

    Space for building services is often limited. This is where this appliance, with its compact dimensions, has a key advantage: you can position it perfectly in a base unit below the kitchen sink or the bathroom washbasin and still use the unit space as you normally would, for example to store cleaning supplies. Simply select your preferred DHW temperature using the rotary selector on the appliance. Adjustable anti-scalding protection ensures maximum safety.

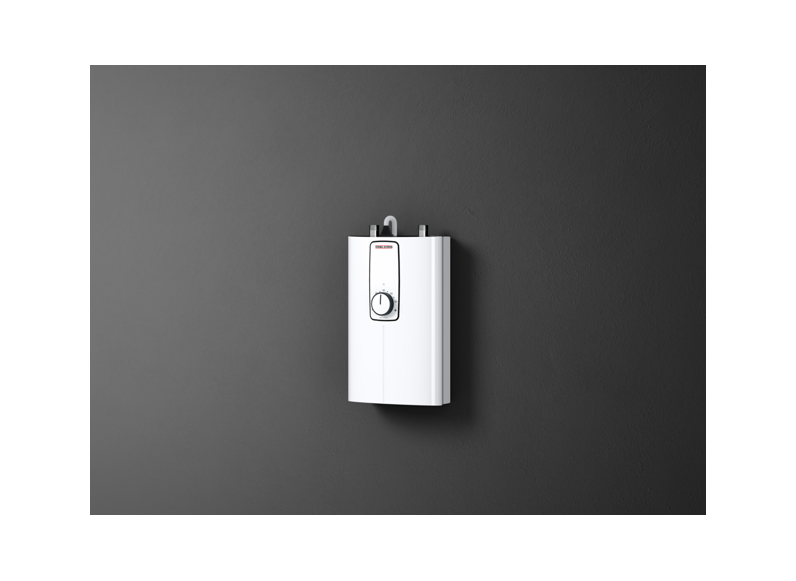

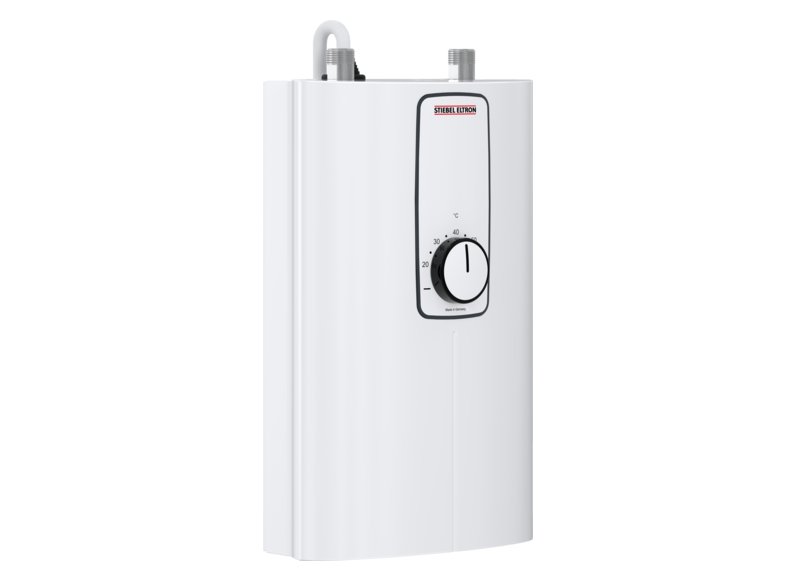

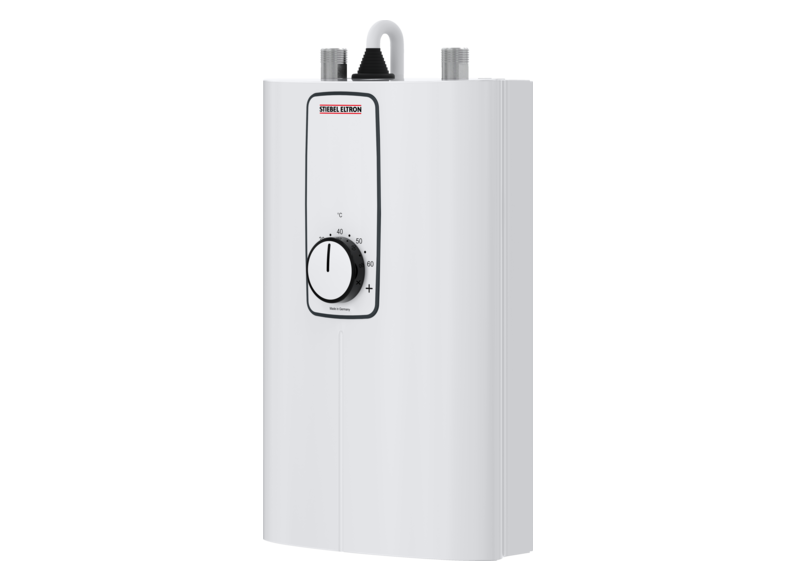

    Compact instantaneous water heater DCE 11/13

    ERP product datasheet
    Reach-Information
    Technical datasheet

    Product Number: 230770

    Rated voltage: 400 V

    Rated voltage 1: 380 V

    Rated voltage 2: 400 V

    Rated voltage 3: 415 V

    Rated output: 11,2/13,5 kW

    Rated output 1: 10,1/12,2 kW

    Rated output 2: 11,2/13,5 kW

    Rated output 3: 12,1/14,5 kW

    Rated current: 18,7/19,5 A

    Rated current 1: 17,8/18,5 A

    Rated current 2: 18,7/19,5 A

    Rated current 3: 19,4/20,2 A

    Fuse protection: 16/20 A

    Fuse protection 1: 16/20 A

    Fuse protection 2: 16/20 A

    Fuse protection 3: 20/20 A

    Frequency: 50/60 Hz

    Frequency 1: 50/60 Hz

    Frequency 2: 50/60 Hz

    Frequency 3: 50/- Hz

    Phases: 3/PE

    IP rating: IP24

    Temperature setting: 20 - 60 °C

    Colour: white

    Height: 293 mm

    Width: 188 mm

    Depth: 99 mm

    Weight: 2.10 kg

    Energy efficiency class: A

    Show all

    Download as PDF

Installation Information:

Please ask your local power supply utility or a registered electrician to install appliances that are not fully wired, i.e. ready to plug in. The electrician should also be able to assist you with obtaining the agreement of the respective power supply utility required for the appliance installation.
