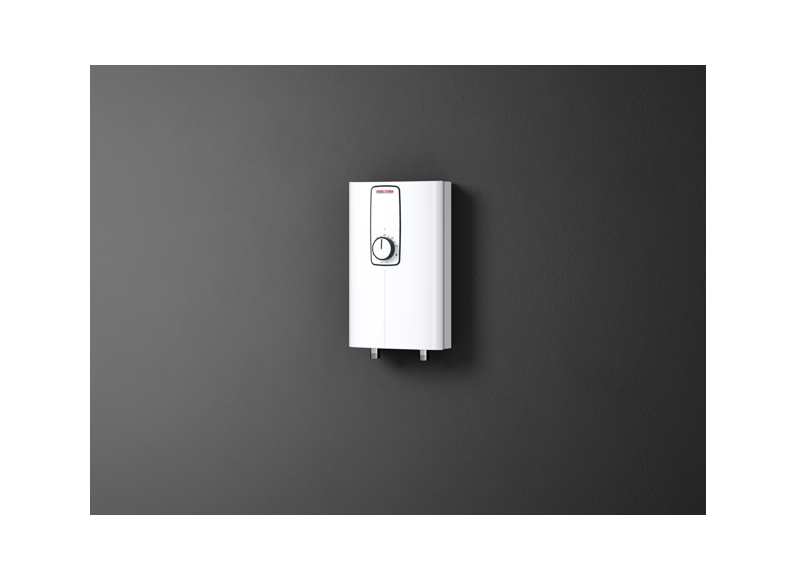

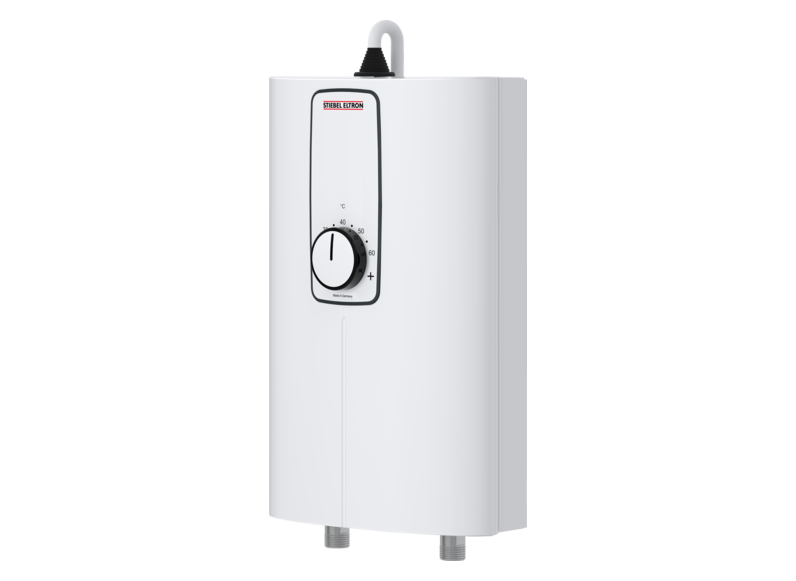

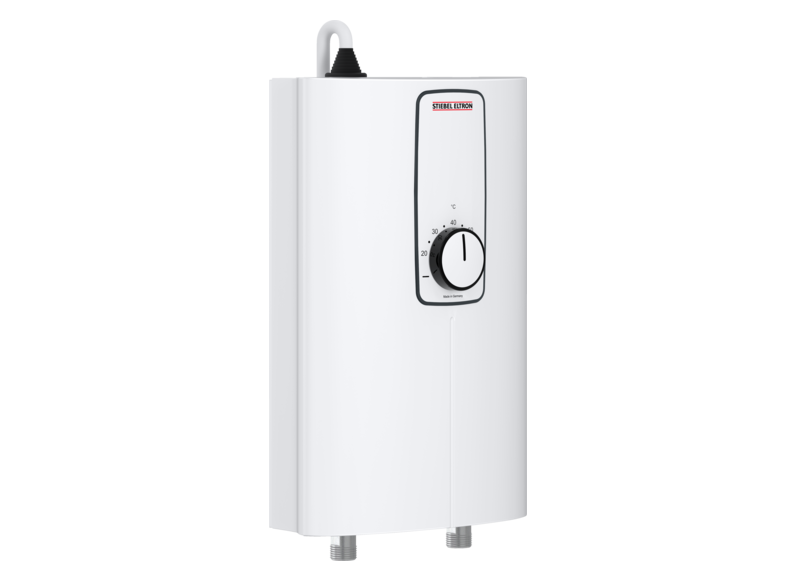

Compact instantaneous water heater
DCE 11/13 H

    • Compact instantaneous water heater with electronic closed-loop control
    • Very good energy efficiency thanks to 3i technology
    • Accurate temperature setting in the range of 20-60 °C
    • Adjustable temperature limit as anti-scalding protection for children
    • For oversink installation
    • Exceptionally slimline, compact design
    Questions about the product Get contact
    award
    award

    Product details

    The perfect blend of performance and style

    This appliance can be integrated anywhere – not only on account of its compact format, but also in terms of design: its minimalistic look allows it to blend elegantly into any surroundings, with installation above the sink or washbasin. The same goes for matching wall mounted taps, which you can also obtain from us. When it comes to performance levels, our instantaneous water heater has nothing to hide either: its electronic control system reliably ensures accurate temperature settings.




    ERP product datasheet
    Technical datasheet

    Product Number: 232792

    Rated voltage: 400 V

    Rated voltage 1: 380 V

    Rated voltage 2: 400 V

    Rated voltage 3: 415 V

    Rated output: 11,2/13,5 kW

    Rated output 1: 10,1/12,2 kW

    Rated output 2: 11,2/13,5 kW

    Rated output 3: 12,1/14,5 kW

    Rated current: 18,7/19,5 A

    Rated current 1: 17,8/18,5 A

    Rated current 2: 18,7/19,5 A

    Rated current 3: 19,4/20,2 A

    Fuse protection: 16/20 A

    Fuse protection 1: 16/20 A

    Fuse protection 2: 16/20 A

    Fuse protection 3: 20/20 A

    Frequency: 50/60 Hz

    Frequency 1: 50/60 Hz

    Frequency 2: 50/60 Hz

    Frequency 3: 50/- Hz

    Phases: 3/PE

    IP rating: IP24

    Temperature setting: 20-60 °C

    Colour: white

    Height: 293 mm

    Width: 188 mm

    Depth: 99 mm

    Weight: 2.20 kg

    Energy efficiency class: A

    Show all

    Download as PDF

Installation Information:

Please ask your local power supply utility or a registered electrician to install appliances that are not fully wired, i.e. ready to plug in. The electrician should also be able to assist you with obtaining the agreement of the respective power supply utility required for the appliance installation.
